All carts built to Steril-Gard specifications. Fully-welded construction. Sound-proofed tops and doors for quiet operation. Exterior push handles for better control and more interior space. One-piece continuous wrap-around bumper, non-marring. Positive lock door latches. Sealed doors for sterility control. Large 6" diameter, easy rolling, cart-washable casters with sealed bearings. All carts can be manufactured to individual specifications. Quick delivery Available Accessories. Wire shelves, solid shelves, roll-out shelves, and stainless steel casters at 5" & 10" tote box drawers. Brake locks, Swivel locks, Exterior security latches, Drop-leaf shelves, Card holders, and Sequential cart numbering system, plus Couplers for Automatic Cart Pickup Systems. You want it, we have it!

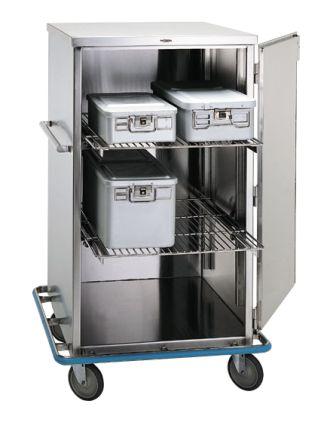

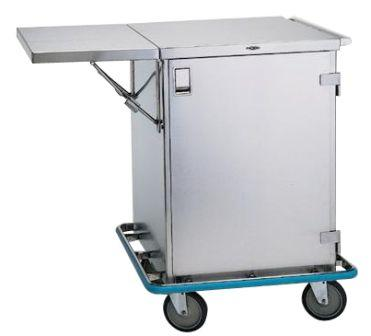

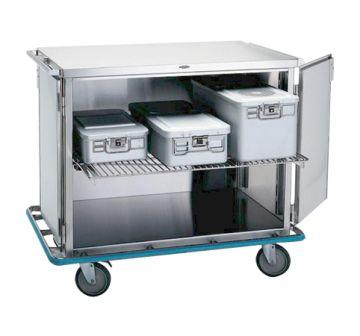

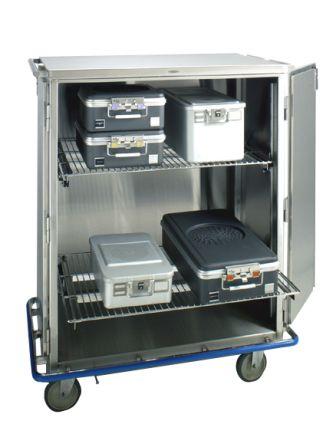

Closed Case Carts

CDS-233
Cabinet Size 23"W x 24-1/4"D x 47"H
Overall Size 28-5/8"W x 28-5/8"D x 56"H

CDS-235
Cabinet Size 28-1/2"W x 28-1/2"D x 47"H
Overall Size 34-1/8"W x 32-3/8"D x 56"H


CDS-242
Cabinet Size 40-1/4"W x 24-1/4"D x 30"H
Overall Size 45-7/8"W x 28-5/8"D x 39"H
CDS-245
Cabinet Size 40-1/4"W x 24-1/4"D x 47"H
Overall Size 45-7/8"W x 28-5/8"D x 56"H

CDS-256-MS
Cabinet Size 23"W x 24-1/4"D x 30"H
Overall Size 28-5/8"W x 28-5/8"D x 39"H
CDS-256-LD
Cabinet Size 23"W x 24-1/4"D x 21"H
Overall Size 28-5/8"W x 28-5/8"D x 30"H

Open Case Carts

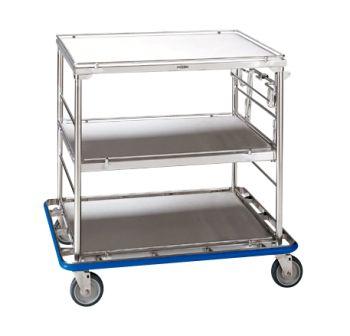

CDS-153
36-1/2"W x 26-3/4"D x 35-1/4"H
Illustrated with optional linen rings to hold hamper bags Linen ring locks in up position and swings down when not in use Equipped with rails on all three surfaces Adjustable stainless steel center shelf Wrap around bumper 5" plate-mounted swivel plate casters

CDS-147
39-3/8"W x 26-1/8"D x 42-1/8"H
Small size distribution cart ideal for case carts systems or general floor use Outboard stem-mounted, 5" swivel casters
CDS-147-A
39-3/8"W x 26-1/8"D x 54-1/8"H
Taller version of the CDS-147 for added storage Outboard stem-mounted, 5" swivel casters

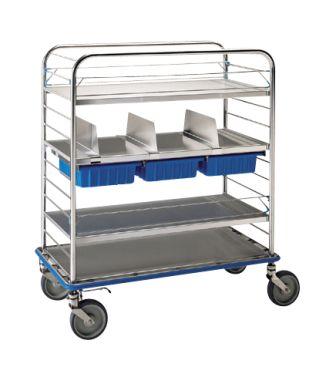

CDS-148
50-5/8"W x 26-1/8"D x 58"H
Medium size distribution cart suitable for general distribution, supply, pharmacy or linen 8" plate-mounted swivel casters with diagonally mounted swivel locks

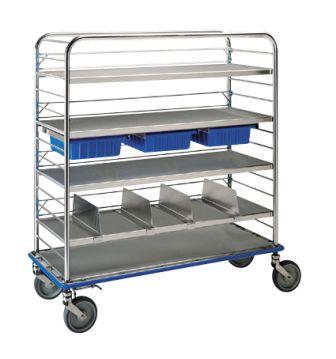

CDS-149
60-3/8"W x 26-1/8"D x 67"H
Large size distribution cart ideal for distribution, supply, storage or linen 8" plate-mounted swivel casters with diagonally mounted swivel locks

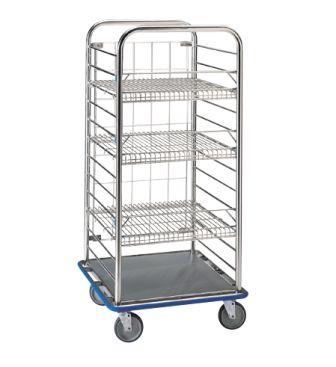

CDS-262
29-3/4"W x 29-3/4"D x 62"H
Designed to be used as a surgical or obstetrical case cart 6" plate-mounted swivel casters with diagonally mounted swivel locks

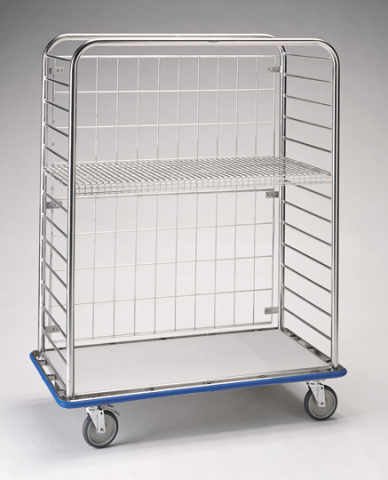

Central Distribution/Exchange Carts

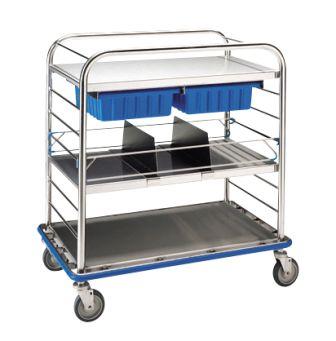

CDS-147
Small size distribution cart ideal for case carts systems or general floor use 39-3/8"W x 26-1/8"D x 42-1/8"H Outboard stem-mounted, 5" swivel casters

CDS-147-A
Small size distribution cart ideal for case carts systems or general floor use 39-3/8"W x 26-1/8"D x 54-1/8"H Outboard stem-mounted, 5" swivel casters

CDS-148
Medium size distribution cart suitable for general distribution, supply, pharmacy or linen 50-5/8"W x 26-1/8"D x 58"H Outboard stem-mounted, 8" swivel casters with diagonally mounted swivel locks

CDS-149
Large size distribution cart ideal for distribution, supply, storage or linen designed to be used as a surgical or obstetrical case cart 6" plate-mounted swivel casters with diagonally mounted swivel locks

CDS-262
Large size distribution cart ideal for distribution, supply, storage or linen designed to be used as a surgical or obstetrical case cart 6" plate-mounted swivel casters with diagonally mounted swivel locks

Instrument / Container Wash Carts

CDS-160
49" W x 26" D x 67"H
Stainless steel construction Built to Steril-Guard specifications Fully welded frame Donut bumpers on legs 5" diameter stainless steel cart-washable swivel casters Five stainless steel wire shelves Six adjustable container lid dividers

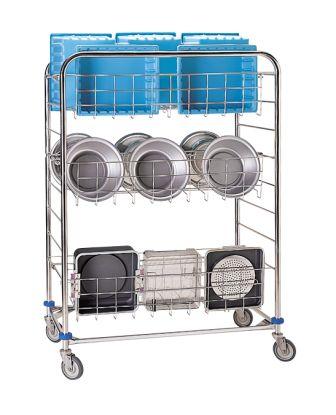

CDS-162
49" W x 26" D x 66 1/2"H
Stainless steel construction Built to Steril-Guard specifications Fully welded frame Donut bumpers on legs 5" diameter stainless steel cart-washable swivel casters Three stainless steel wire shelves with retaining rods Holds instrument containers, tote boxes, and basins

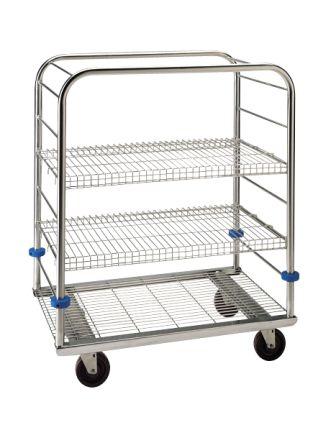

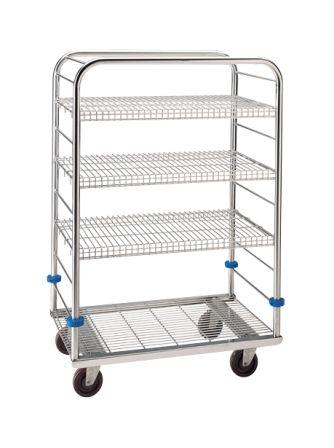

Sterilizer Carts

CDS-150
37-3/4"W x 24-1/2"D x 45-3/8"H overall outside dimensions including bumpers 17-1/2" center-to-center caster spacing Shown with optional stainless steel wire shelves

CDS-151
37-3/4"W x 24-1/2"D x 55-3/8"H overall outside dimensions including bumpers 17-1/2" center-to-center caster spacing Shown with optional stainless steel wire shelves

Supply/Exchange Carts

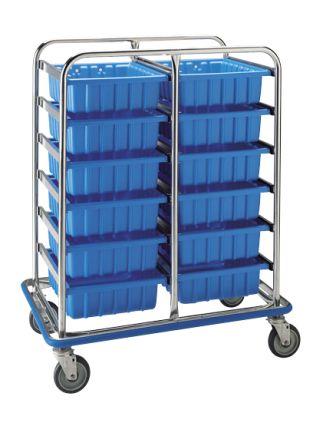

CDS-152-12
36-1/4"W x 24-1/8"D x 45"H
Holds 12 standard 5" tote boxes (shown) or 6 large 10" tote boxes or any combination of the two sizes Outboard stem mounted, 5" casters for stability

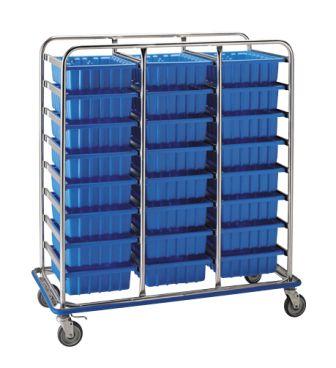

CDS-152-24
51-1/2"W x 24-1/8"D x 57"H
Holds 24 standard 5" tote boxes (shown) or 12 large 10" tote boxes or any combination of the two sizes Outboard stem mounted, 5" casters with diagonally mounted swivel locks for stability

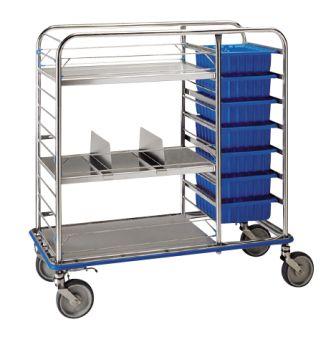

CDS-177
55-3/8"W x 26-1/8"D x 58"H
Holds 7 standard 5" tote boxes (shown) or 3 large 10" tote boxes or any combination of the two sizes 8" plate-mounted swivel casters with diagonally mounted swivel locks

CDS-178
66-5/8"W x 26-1/8"D x 69"H
Holds 9 standard 5" tote boxes (shown) or 4 large 10" tote boxes or any combination of the two sizes 8" plate-mounted swivel casters with diagonally mounted swivel locks

Utility Carts

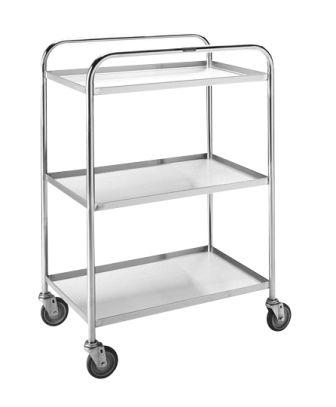

CDS-140
27-1/2"W x 18-1/8"D x 40"H
Lightweight cart for easy mobility Edges of shelves turned up 1" to contain items CDS-140-B
32"W x 21-1/4"D x 40"H
Same as CDS-140 with 5" rolling bumpers on each leg

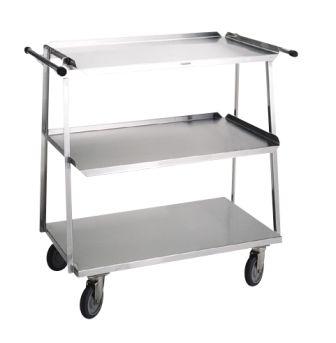

CDS-145
41-1/2"W x 22"D x 38-1/4"H
A-frame design for easy access from the side Sides and back of each shelf turned up to contain items, front edge turned down to ease placing items
